Product Summary
The LTC
?
1757A-2 is a dual band RF power controller for
RF power amplifiers operating in the 850MHz to 2GHz
range. The LTC1757A is pin compatible with the LTC1757
but has improved RF detection range. The input voltage
range is optimized for operation from a single lithium-ion
cell or 3× NiMH. Several functions required for RF power

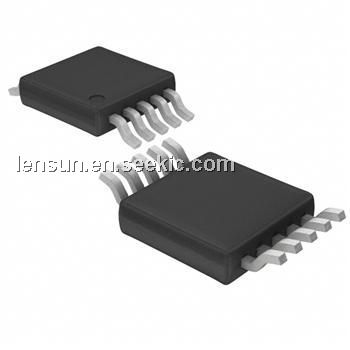

control and protection are integrated in one small 10-pin
MSOP package, thereby minimizing PCB area.
The LTC1757A-1 is a single output RF power controller
that is identical in performance to the LTC1757A-2 except
that one output (VPCA) is provided. The LTC1757A-1 can
be used to drive a single RF channel or dual channel
module with integral multiplexer. This part is available in
an 8-pin MSOP package.
RF power is controlled by driving the RF amplifier power
control pins and sensing the resultant RF output power
via a directional coupler. The RF sense voltage is peak
detected using an on-chip Schottky diode. This detected
voltage is compared to the DAC voltage at the PCTL pin
to control the output power. The RF power amplifier is
protected against high supply voltage and current and
high power control pin voltages.
Internal and external offsets are cancelled over temperature by an autozero control loop, allowing accurate low
power programming. The shutdown feature disables the
part and reduces the supply current to <1μA.
?
1757A-2 is a dual band RF power controller for
RF power amplifiers operating in the 850MHz to 2GHz
range. The LTC1757A is pin compatible with the LTC1757
but has improved RF detection range. The input voltage
range is optimized for operation from a single lithium-ion
cell or 3× NiMH. Several functions required for RF power
control and protection are integrated in one small 10-pin
MSOP package, thereby minimizing PCB area.
The LTC1757A-1 is a single output RF power controller
that is identical in performance to the LTC1757A-2 except
that one output (VPCA) is provided. The LTC1757A-1 can
be used to drive a single RF channel or dual channel
module with integral multiplexer. This part is available in
an 8-pin MSOP package.
RF power is controlled by driving the RF amplifier power
control pins and sensing the resultant RF output power
via a directional coupler. The RF sense voltage is peak
detected using an on-chip Schottky diode. This detected
voltage is compared to the DAC voltage at the PCTL pin
to control the output power. The RF power amplifier is
protected against high supply voltage and current and
high power control pin voltages.
Internal and external offsets are cancelled over temperature by an autozero control loop, allowing accurate low
power programming. The shutdown feature disables the
part and reduces the supply current to <1μA.
Parametrics
Features
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1757A-2EMS |
|
IC CTRLR RF POWER DUAL 10MSOP |
Data Sheet |
|
|
||||||
|
LTC1757A-2EMS#PBF |
|
IC CTRLR RF POWER DUAL 10MSOP |
Data Sheet |
Negotiable |
|
||||||
|
LTC1757A-2EMS#TR |
|
IC CTRLR RF POWER DUAL 10MSOP |
Data Sheet |
|
|
||||||
|
LTC1757A-2EMS#TRPBF |
|
IC CTRLR RF POWER DUAL 10MSOP |
Data Sheet |
Negotiable |
|
||||||
